What is a 10GBASE-LR Optical Module?

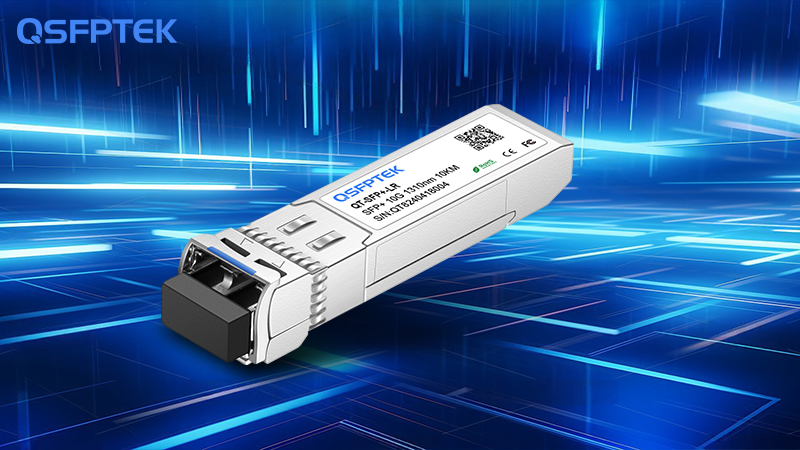

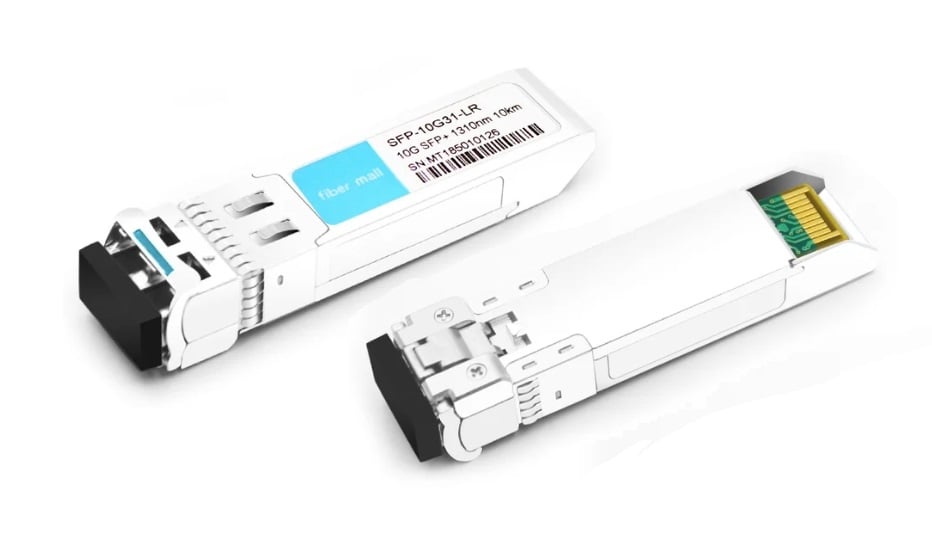

The 10GBASE-LR optical module is a widely adopted transceiver based on the IEEE 802.3ae standard, designed to deliver 10 Gigabit Ethernet over single-mode fiber (SMF) for distances up to 10 kilometers. The “LR” stands for “Long Reach,” and this capability has made the module a popular choice for enterprise backbones, metropolitan area networks (MANs), and carrier-grade applications. Packaged in the SFP+ form factor, 10GBASE-LR modules offer a compact, hot-swappable solution that is compatible with many networking devices, from routers to switches to media converters. Despite the emergence of faster standards, 10GBASE-LR continues to be a stable and cost-effective foundation for many network infrastructures.
Key Specifications and Technology Breakdown
The 10GBASE-LR module typically operates at a center wavelength of 1310nm and uses a DFB (Distributed Feedback) laser for its transmitter. Its receiver is often a PIN photodiode, though APD (Avalanche Photodiode) versions exist for extended performance. These modules support a transmission distance of up to 10km over single-mode fiber, which makes them suitable for medium- to long-distance links. Most 10GBASE-LR modules consume between 1.0W and 1.5W of power and operate at 3.3V. They are built with Digital Diagnostic Monitoring (DDM) features, allowing real-time reporting of optical power, temperature, voltage, and other performance metrics. This technical robustness has helped 10GBASE-LR remain a favorite among network administrators.
Comparing 10GBASE-LR with Other 10G Solutions
In the world of 10 Gigabit Ethernet, several optical and copper-based solutions exist, each with specific advantages. Compared to 10GBASE-SR, which operates over multimode fiber (MMF) for shorter distances (up to 300 meters), 10GBASE-LR offers much greater reach, making it ideal for campus networks or between-building links. In contrast to 10GBASE-ER, which supports up to 40km, LR modules provide a balance between cost and range. Copper alternatives like 10GBASE-T offer lower initial costs but are limited to 100 meters and consume more power. 10GBASE-LR strikes a sweet spot—efficient for long-distance links, more affordable than ER modules, and simpler to deploy than some high-speed DAC/AOC alternatives.
Deployment Scenarios and Practical Applications
10GBASE-LR modules find use in a wide range of environments. In enterprises, they’re often deployed to connect buildings across a campus or to link server rooms on different floors. In service provider environments, they enable robust links between aggregation points and regional offices. These modules also play a significant role in data centers, where 10G connectivity is still widely used for storage, backup, and management networks. Their 10km reach allows for flexible equipment placement and simplifies network topology design, especially in facilities with distributed infrastructure or large floor plans.
Compatibility and Purchasing Considerations
When selecting a 10GBASE-LR module, compatibility with existing hardware is critical. These modules follow the MSA (Multi-Source Agreement), ensuring form factor uniformity, but not all are interoperable with every switch vendor. That’s why many users opt for vendor-coded third-party modules designed to match equipment from brands like Cisco, Juniper, Arista, or HPE. It’s also important to ensure compliance with industry standards such as RoHS and CE, especially in regulated environments. Buyers should also look for modules with robust DDM support and temperature ratings appropriate to their operating conditions—especially in industrial or outdoor installations.
Conclusion: 10GBASE-LR Still Holds Strong
Despite the growing adoption of 25G, 40G, and even 100G networks, 10GBASE-LR remains a workhorse in modern networking. Its affordability, reliability, and compatibility with existing single-mode fiber infrastructure make it a smart choice for stable long-range connections. Whether you’re building out a municipal network, extending campus infrastructure, or maintaining a legacy data center, the 10GBASE-LR optical module continues to offer outstanding value without compromising performance. It’s a classic standard that still delivers in a rapidly evolving digital landscape.
